Why is not the Junit report screenshot attachment or system-out log working

Im trying to get the Gitlab JUnit Screenshots feature to function. Right now I’m handcrafting my XML just to test the feature but I can’t get it to work.

It says the screenshot support was introduced in v13.0 of Gitlab. We’re currently running on gitlab.com which reports this version 16.2 on the help page: “GitLab Enterprise Edition 16.2.0-pre b442d76a3c7”

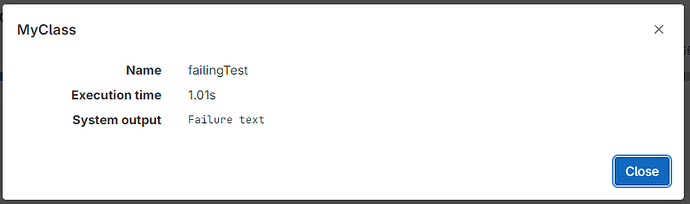

In fact, Gitlab doesn’t seem to parse the <system-out> tag at all so this is my first focus. Then I’ll move on to “ATTACHMENT” data (although I tried that first). Whatever I put in the <failure> tag on the other hand, is presented as “System out” in the UI. What’s up?

I have the following Junit report XML file:

<?xml version="1.0" encoding="UTF-8"?>
<testsuite name="MySuite" tests="1" failures="1" errors="0" skipped="0" time="9.152" timestamp="2023-07-06T10:40:18" hostname="localhost">
    <testcase classname="MyClass" name="failingTest" time="1.014">
        <failure>Failure text</failure>
        <system-out>System-out text</system-out>
